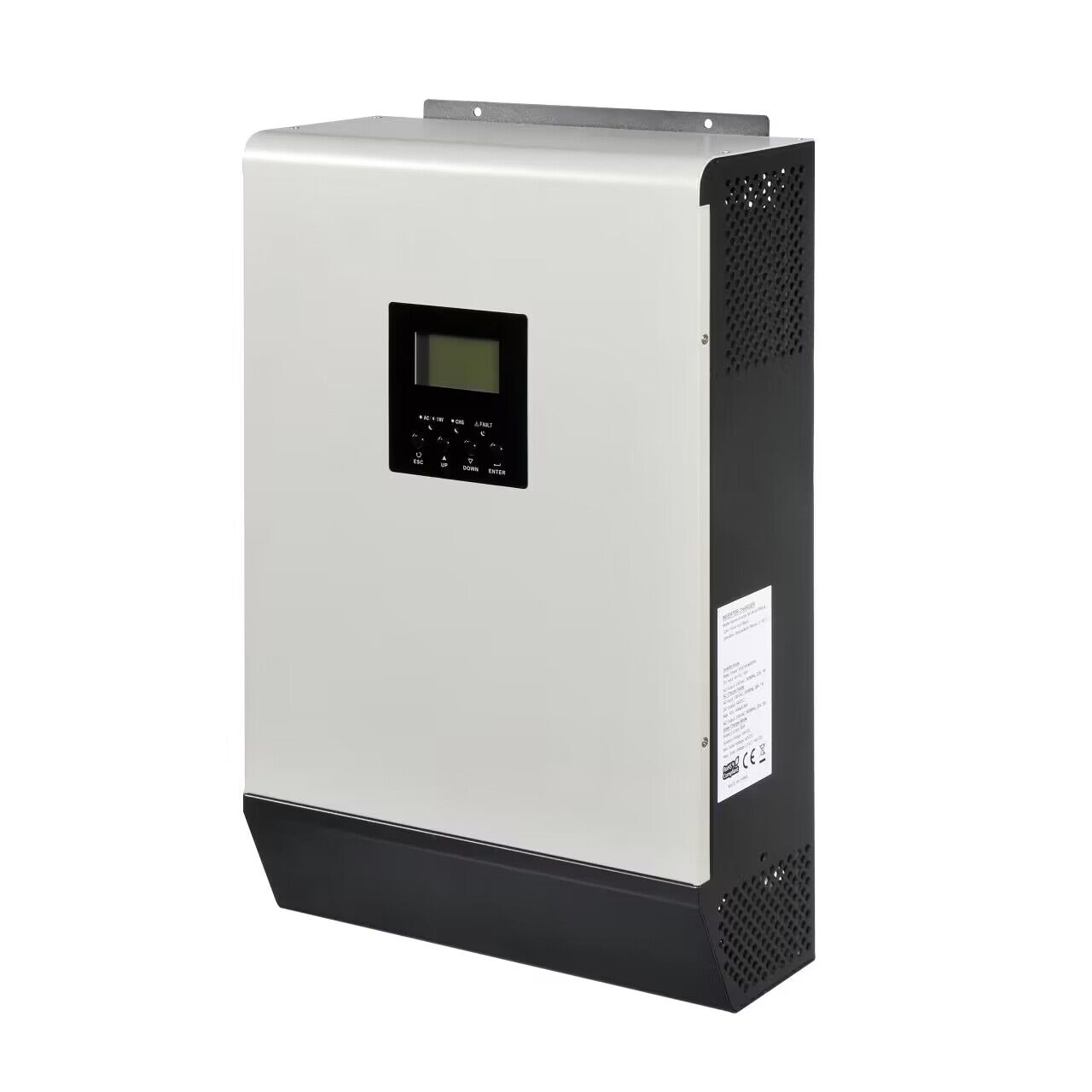

Product Features

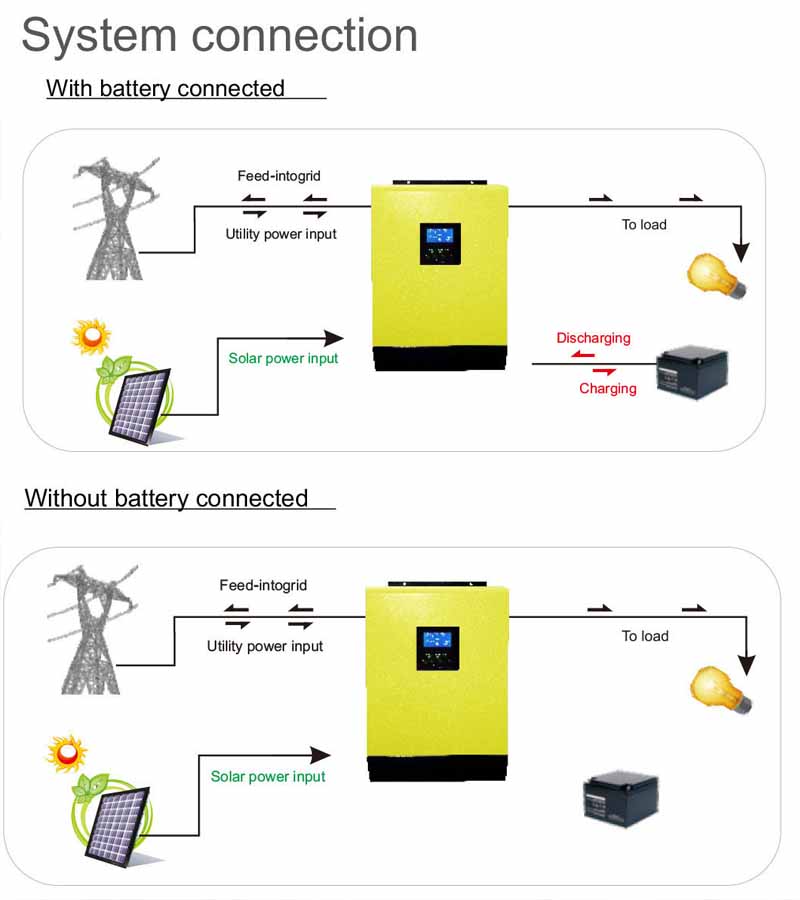

- Hybrid solar inverter(on/off grid inverter).
- Output power factorOn-grid with energy storageConfigurable AC/Solar charger priority via LCD setting.o
- Battery aua izat on tunctine tc cptimize batery
- External Wi-fi devices.

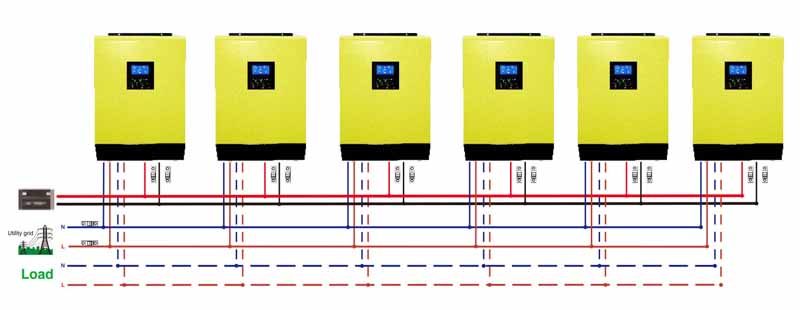

- Parallel operation with up to 9 units (45KVA)
| Model |
SC-IG-5000W |
| Max PV Array Power |
5000W |
| Rated Output Power |
5000W |
| Maximum PV Array Open Circuit Voltage |
|
| MPPT Range Circuit Voltage |
120-450VDC |
| GRID-TIE OPERATION |
| GRID OUTPUT (AC) |
|
| Nominal Output Voltage |
220/230/240VAC |
| Output Voltage Range |
184-265VAC |
| Nominal Output Current |
25A/23.9A/22.9A |
| Efficiency |
UP TO 93.5% |
| OFF-GRID,HYBRID OPERATION |
| GRID INPUT |
|
| Acceptable Input Voltage Range |
120-280VAC |
| Frequency Range |
50HZ/60HZ(Auto sensing) |
| BATTERY MODE OUTPUT (AC) |
|
| Nominal Output Voltage |
220/230/240VAC |
| Output Wave form |
Pure sine wave |
| BATTERY & CHARGER |
|
| Nominal DC Voltage |
48VDC |
| Maximum Solar Charge Current |
90A |
| Maximum AC Charge Current |
60A |
| Maximum Charge Current |
90A |
| EMERGENCY OUTPUT POWER |
| Maximum output Power |
5000A |
| Surge Power |
10000W |
| Automatic Transfer Time |
<8MS |
| GENERAL |
| INTERFACE |
|
| Parallel Function |
No |
| Communication |
USB or RS232/Dry-Contact |
| ENVIRONMENT |
| Humidity |
0-90%RH(No Condensing) |
| Operating Temperature |
0 to 50℃ |
| Net Weight(KG) |
11.35 |
| Rough Weight(KG) |
12.35 |
| Dimension (W x D x H)mm |
295*468.6*120.2 |


SUNCHEES Can Provide What Service To Your ?
1:Professional R&D Team
We have 12+ years professional R&D team to provide customers best design , professional install/ test guide and after sale sevice, sunchees products are successfully sold to more than 130 countries,Won five-star praise from 100% customers
2:OEM/ODM Service
Sunchees can offer OEM service as per your specific requirements ,Customize the solar system and solar air conditioner solutions in the practical application ,Three new products lead the market every year.
3.Perfect after-sales service system
Once the order is confirmed, we will arrange production immediately. Powerful productivity and automation.Can promise delivery in the short term. Such as:Sampleorder(1set-10set)delivery time:5-7 workday , Bulk order:(20-100set) delivery time: 10-20 workdays.
1.Regardless of the size of the contract, we will strictly implement the provisions stipulated in the contract as scheduled with high quality and quantity; If we can't deliver on time, we will pay 5% of the total amount as liquidated damages to your company;
2. In the process of production, we will arrange a special person to feedback the production progress of the goods regularly;
3. We will pay a return visit to the implementation of each contract, to ensure that the goods timely arrives in the hands of customers.
Company profile:
 |
Sunchees was founded in 2008, head office and factory is located in Foshan, Guangdong. China,but its sales network has spread to more than 100 countries and regions around the world.
|
|
Main business: solar power system one stop solutions, solar inverter , solar air conditioner system, solar street light system . solar DC power system ect .
|
 |
 |
Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.
|
