10kw Solar Power Panel Generator Off Grid Mppt Solar Inverter
10kw Solar Inverter Photovoltaic Commercial Solar Power Inverter Off Grid Inverter

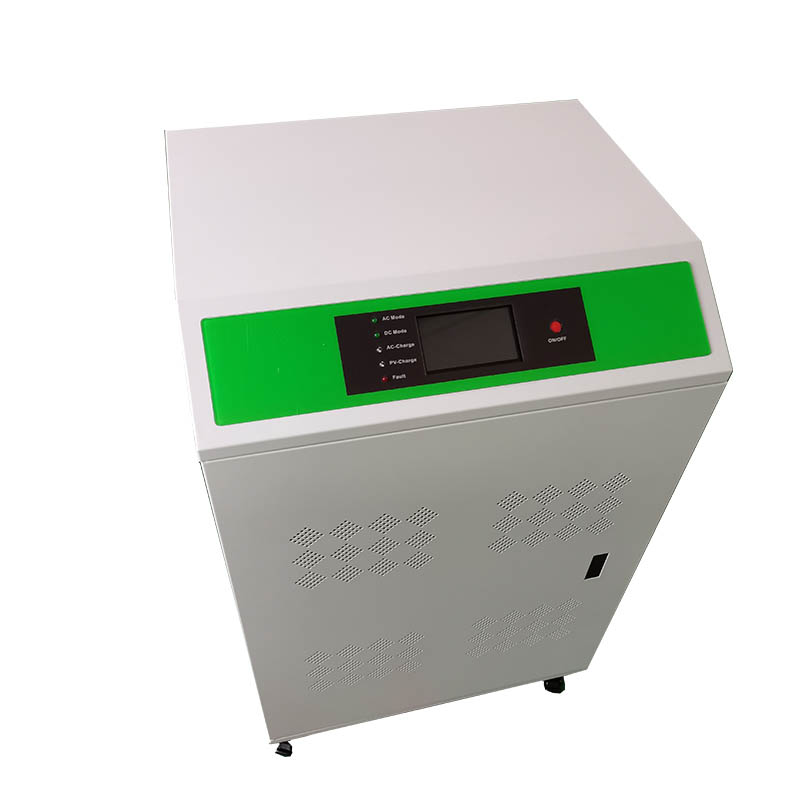

MODEL : MHIC-10KW
LEAD TIME : 7-15days
PRODUCT ORIGIN : CHINA
SHIPPING PORT : GUANGZHOU/FOSHAN
PAYMENT : 30% deposit by T/T ， 70% balance by T/T before shipment
Produt Details
SOLAR INVERTER SERIES-PRODUCT OVERVIEW
MHIC series with dual MCU design, PV charge controller and inverter integrated optimization solutions, to provide users with the best experience. Pure sine wave output to meet various types of load; mains supply preferred mode / power saving mode /battery preferred mode for easy meeting of the needs of different users. Using intelligent optimization SOC control, a separate three-stage solar charge management, improve the effectiveness of the charging of the battery.LCD display integrated inverter and photovoltaic panels, equipment operating status intuitive, concise manipulation.It is widely applied to families, schools, streets, border,pastoral, industrial equipment, satellite communications equipment, ships and so on.
Model: MPPT
10KW
Battery
rated voltage(VDC)
96
AC Charge Current
30A MAX
Battery Type
Can be set
Input
Voltage Range
170-275VAC
frequency
45-65Hz
Output
Voltage Range
220VAC-240VAC; ±5%
frequency
50/60Hz±1%
Output wave
Pure Sine Wave
Change time
＜10ms(Typical load)
Efficiency
＞88%（80% Resistive load）
overload
110-120%/30S；＞160%/300ms；
Protection function
Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection
Solar Controller
MPPT Voltage Range
48VDC:72V~200VDC;96VDC:144V~300VDC
PV Power
48VDC-100A(5300W)
90VDC-100A(10600W)
Rated charge current
100A(Max)
MPPT efficiency
≥99%
Average charging voltage(lead acid battery
48V/56.8VDC;96V/113.6VDC
Floating charge voltage
48V/56VDC;96V/113VDC
Operating ambient temperature
-15-+50℃
Storage ambient temperature
-20 - +50℃
Operating / storage environment
0-90% No Condensation
Dimensions:W * D * H (mm)
550*475*860mm
Packing size: W * D * H (mm)
640*545*1000mm
Product features
Double CPU intelligent control technology, performance excellence;
IGBT board ,100% imported raw materials from Germany,These materials can withstand higher voltage and current to better protect the inverter,
Innovative operation system.All the operation adjustment can be done on the touch screen easily.Can see daily data,monthly data and total data on the screen
The AC priority / DC priority / power saving mode can be set up
WIFI is optional.can control the inverter remotely and check the running data
The pure sine wave output, can adapt to various types of load;
Wide input voltage range,high-precision output automatic voltage function.
Touch color screen, intelligent control, easy operation
The output overload, short circuit protection, automatic protection and alarm;
Lithium battery,gel battery,lead-acid battery are all acceptable.One touch can switch battery type
SUNCHEES Can Provide What Service To Your ? 1：Professional R&D Team We have 12+ years professional R&D team to provide customers best design , professional install/ test guide and after sale sevice, sunchees products are successfully sold to more than 130 countries，Won five-star praise from 100% customers
2:OEM/ODM Service Sunchees can offer OEM service as per your specific requirements ,Customize the solar system and solar air conditioner solutions in the practical application ，Three new products lead the market every year.
3：Perfect after-sales service system Once the order is confirmed, we will arrange production immediately. Powerful productivity and automation.Can promise delivery in the short term. Such as:Sampleorder(1set-10set)delivery time:5-7 workday , Bulk order:(20-100set) delivery time: 10-20 workdays.
Regardless of the size of the contract, we will strictly implement the provisions stipulated in the contract as scheduled with high quality and quantity; If we can't deliver on time, we will pay 5% of the total amount as liquidated damages to your company;
2. In the process of production, we will arrange a special person to feedback the production progress of the goods regularly;
3. We will pay a return visit to the implementation of each contract, to ensure that the goods timely arrives in the hands of customers.

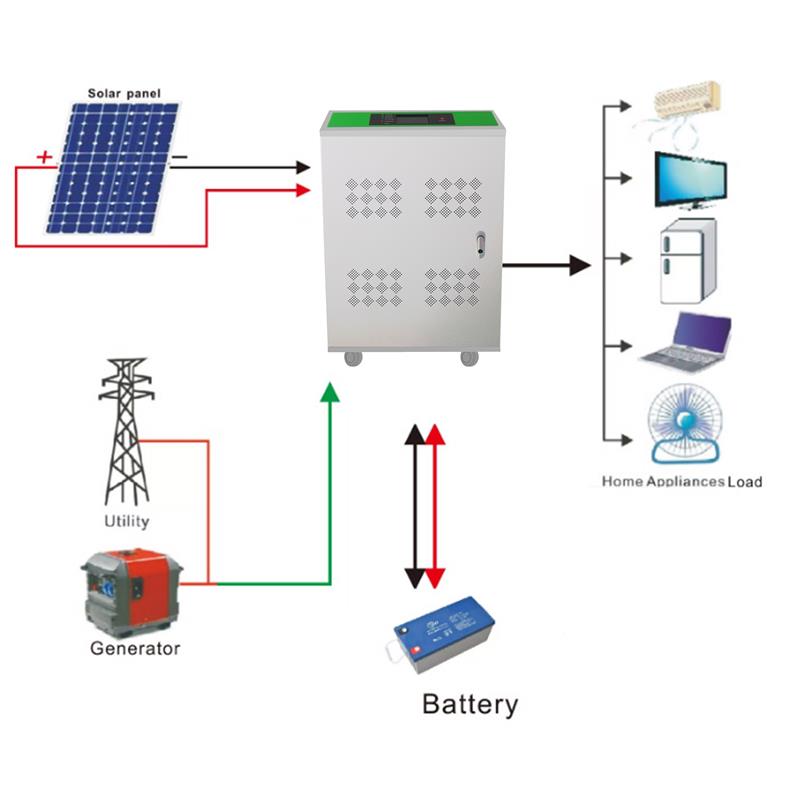

How does the off grid solar power system work:
This system not only has solar power system function,but also has city grid complement function and UPS function
At daytime,the solar panels will generate the electricity to charge the battery bank through solar charge controller and the inverter will convert battery DC power into AC power and take the loads.
At nighttime,with fully charged battery bank,the inverter will convert battery DC power into AC power and take the loads
When there is no sunshine and battery power is used out,the inverter will automatically switch to use city grid power and take the loads
Advantage:
100%green energy，no pollution，no noise
High efficiency solar panel with 25 years lifespan can guarantee fast cost-recovery and long-term benefit
Stand-alone system,easy installation and operation
Nice after-sale service,provide installation guide and technical support
Company profile：
Sunchees was founded in 2008, head office and factory is located in Foshan, Guangdong. China,but its sales network has spread to more than 100 countries and regions around the world.
Main business: solar power system one stop solutions, solar inverter , solar air conditioner system, solar street light system . solar DC power system ect .
Sunchees products are widely used in home, agriculture, industry, finance, electric power, transportation, security, new energy. Its stable and excellent performance have been widely recognized.
